Block Vibration Testing – Advanced Solutions for Dynamic Property Analysis

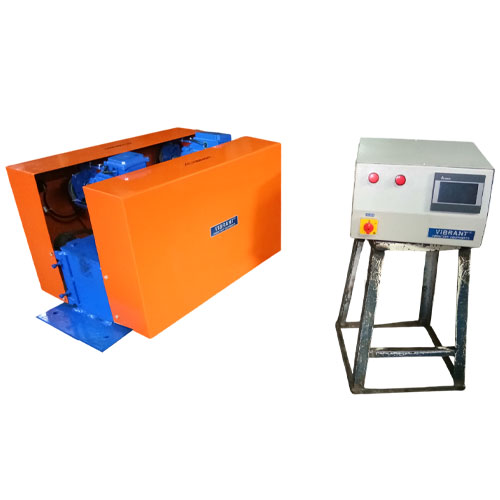

VIBRANT Vibration Block Testing Equipment is designed to evaluate the dynamic properties of soil and structures effectively on site. Comprising three main elements—the Vibration Exciter, the Control Panel, and the Sensor—this equipment delivers precision, reliability, and ease of use with advanced technology for enhanced testing performance.
Parameters logged in the data file through the control panel, helps you derive the damping of the soil and hence the soil properties. Our equipment is suitable as per Indian Standard IS-5249. The complete data monitoring and logging facility is housed in one panel for ease of operation
Key Features
- Rugged and Compact Design – The Vibration Exciter is built to generate high-level dynamic forces of varying amplitude, with high-speed capabilities.
- Touch Screen Controller – Ensures easy operation, offering display, control of vibration parameters, data logging, and a programmable process timer.
- Versatile Functionality – Suitable for testing in diverse configurations, adaptable to various mounting positions.
- Soil Damping Analysis – Parameters logged in the data file through the control panel help derive the damping of the soil and assess soil properties.
- Indian Standard Compliance – The equipment is built in accordance with Indian Standard IS-5249, ensuring accuracy and reliability.
- Integrated Monitoring Panel – The entire data monitoring, control and logging facility is housed in one panel for ease of operation.
Exciter Specifications
- Peak Force: 2000 Kgf at 50 Hz.
- Gear Mechanism: Helical/Spur Gear assemblies.
- Force Control: Adjustable via frequency control of the prime mover or eccentricity control.
- Eccentricity Adjustment: 5 steps.
- Frequency Range: 0 to 50 Hz.
- Mounting: Operates in any position.
- Driving Motor: 2HP, 3-phase, 50 Hz AC.
- Speed Range: 0–3000 rpm.
Control Panel Specifications
- Input Power: 220 V, 1-Phase, 50 Hz.
- Capacity: 1.5 KW.
- Output Frequency: 0–50 Hz, variable in steps of 0.1 Hz.
- Indications:
- Frequency: 0–50 Hz.
- Displacement: 0–2000 microns.
- Velocity: 0–200 mm/sec.
- Acceleration: 0–160 m/sec².
- Timer: Programmable, 0–30 minutes.
- Sensor: High-precision Accelerometer Sensor.
- Interface/Display: HMI Touch Screen / PC for user-friendly operation.
- Data Logging: Facilitated via a USB port for external storage on a pen drive.
