VIBRATION TESTING & SIMULATION

VIBRATION SIMULATOR

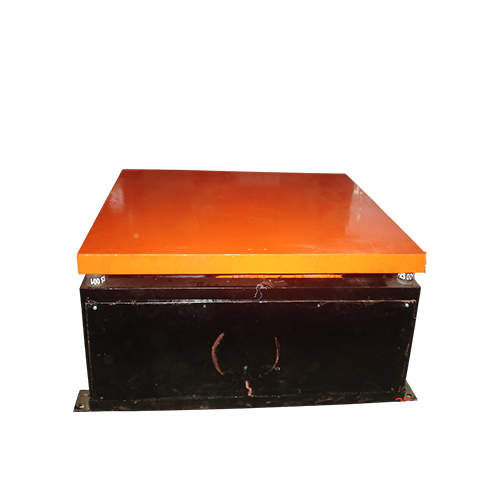

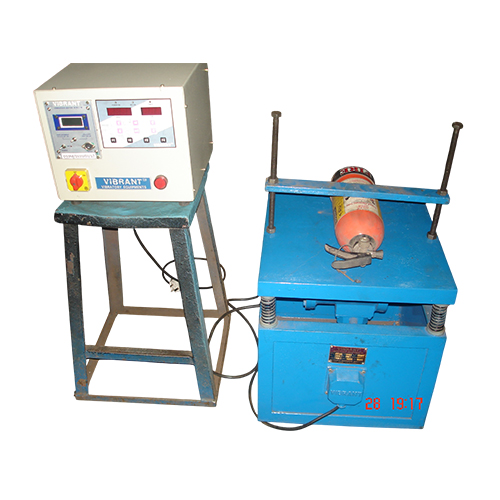

VIBRANT Vibration Test Simulator is a mechanical reaction shaker with typical frequency range of 8-60 Hz, provides a low-cost approach for testing electronic products, components and equipment for their reliability and fatigue life. VIBRANT Vibration Test Simulator meet IS, ISTA, ASTM, MIL STD, ISO and other internationally and industrially recognized standards. We offer wide variety of standard table sizes and capacities along with a standard frequency range from 8 to 60 Hz Custom built Vibration Test Systems can also be developed as per client specifications and need.
VIBRATION TEST SIMULATOR FEATURES
  • Reaction type, mechanical vibration, machine preforms vertical and horizontal sinusoidal tests.
  • Test Frequency is infinitely adjustable between 8 and 60 Hz under operation.
  • Any combination of frequency and displacement must not exceed 3.2 G acceleration (10G optional).
  • Self-contained, built in isolation system eliminates the need for special foundations.
  • Vibratory displacement is manually adjustable when the machine is not operating.
  • Once set, displacement is maintained at a constant level regardless of the test frequency.
  • Standard utility requirements: 220V, 1-Ph, 50Hz power or 415V, 3Ph, 50Hz.
Non-standard supplies like 110V, 380V or 60Hz can be offered as Optional.

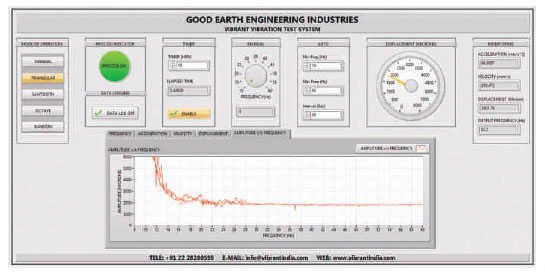

USING PC OR LAPTOP

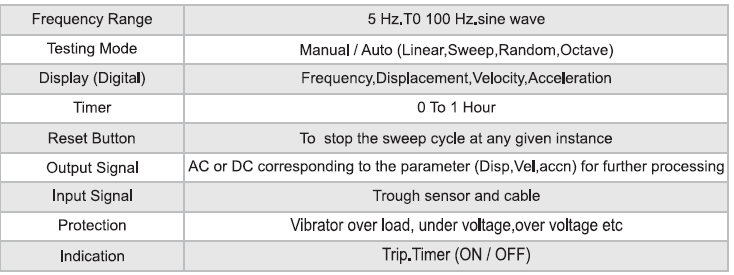

STANDARD FEATURES :
  • Operates on Windows 7 or higher Version
  • Auto Sweep Cycle for Triangle, Sawtooth, Octave and Random Test
  • Acceleration, Velocity and Displacement Display
  • Graphical Display for Vibration Parameters
  • Data Logging In Excel Format
  • Run Duration Timer with Auto Stop Function
vibration-simulator

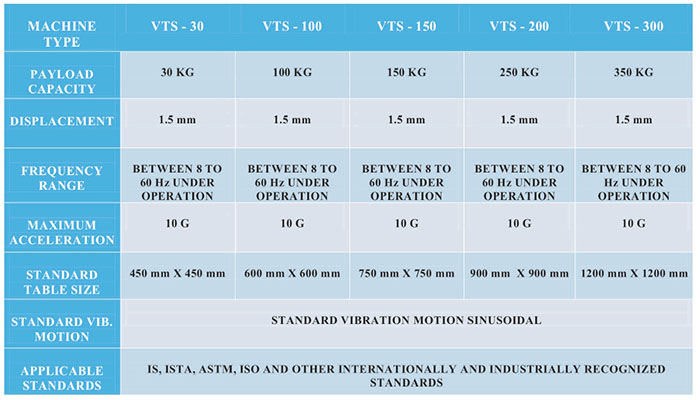

Model Payload Capacity Displacement Frequency Range Max. Acc Standard Table Size Standard Vibration Applicable Standard
VTS-30 30 kg 1.5 mm Between 8 to 60Hz Under Operation 10 G 450 mm * 450 mm Standard Vibration Motion Sinusoidal IS, ISTA, ASTM, MIL STD, ISO and other internationally and industrially recognized standards.
VTS-100 100 kg 1.5 mm Between 8 to 60Hz Under Operation 10 G 600 mm * 600 mm
VTS-150 150 kg 1.5 mm Between 8 to 60Hz Under Operation 10 G 750 mm * 750 mm
VTS-200 250 kg 1.5 mm Between 8 to 60Hz Under Operation 10 G 900 mm * 900 mm
VTS-300 350 kg 1.5 mm Between 8 to 60Hz Under Operation 10 G 1200 mm * 1200 mm
