VIBRATORS

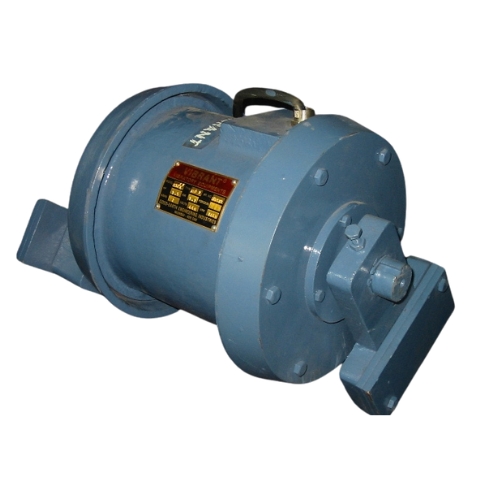

ROTARY ELECTRIC VIBRATOR
Construction features
  • Fully enclosed construction is suited for use in industrial environment or outdoor applications.
  • Continuous Duty design allows operation at maximum force setting in the worst environments, without the aggravation of periodic shut down.
  • Terminal box & Cable designed to withstand vibration, dust & humidity. The terminal box itself is packed with a specially developed compound which is non hardening and has high adhesion to protect the motor leads
  • Long service life is ensured through careful selection of highest quality bearings
  • Completely adjustable force output is accomplished with a simple mechanical adjustment of the eccentric weights.

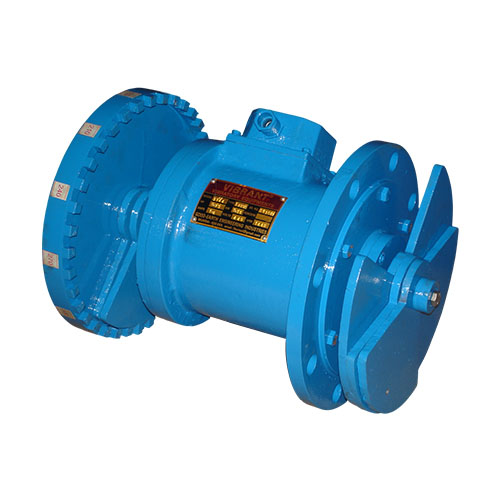

rotary-electric-vibrator

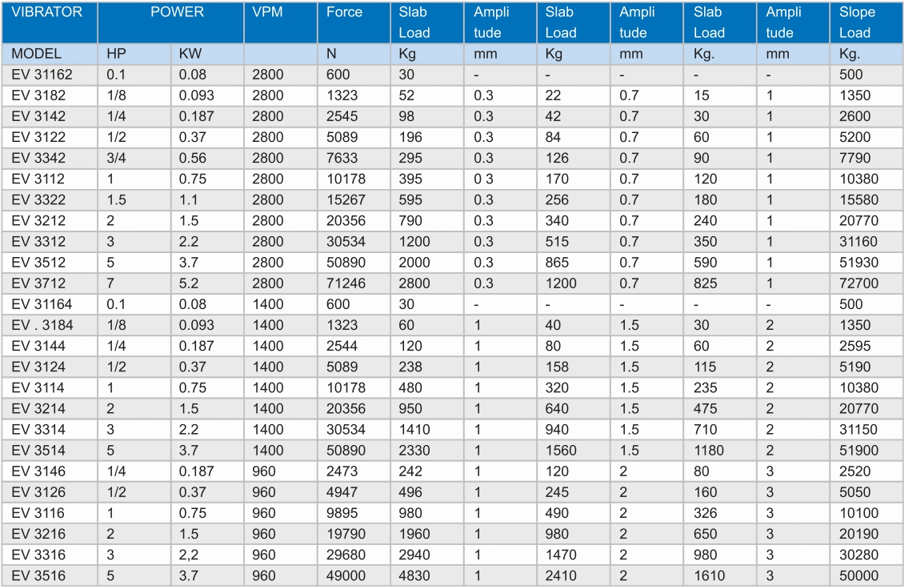

VIBRATOR POWRE VPM Force Slab Load Amplitude Slab Load Amplitude Slab Load Amplitude Slope Load
MODEL HP KW N Kg mm Kg mm kg. mm kg.
EV 31162 0.1 0.08 2800 600 30 500
EV 3182 1/8 0.093 2800 1323 52 0.3 22 0.7 15 1 1350
EV 3142 1/4 0.187 2800 2545 98 0.3 42 0.7 30 1 2600
EV 3122 1/2 0.37 2800 5089 196 0.3 84 0.7 60 1 5200
EV 3342 3/4 0.56 2800 7633 295 0.3 126 0.7 90 1 7790
EV 3112 1 0.75 2800 10178 395 03 170 0.7 120 1 10380
EV 3322 1.5 1.1 2800 15267 595 0.3 256 0.7 180 1 15580
EV 3212 2 1.5 2800 20356 790 0.3 340 0.7 240 1 20770
EV 3312 3 2.2 2800 30534 1200 0.3 515 0.7 350 1 31160
EV 3512 5 3.7 2800 50890 2000 0.3 865 0.7 590 1 51930
EV 3712 7 5.2 2800 71246 2800 0.3 1200 0.7 825 1 72700
EV 31164 0.1 0.08 1400 600 30 500
EV 3184 1/8 0.093 1400 1323 60 1 40 1.5 30 2 1350
EV 3144 1/4 0.187 1400 2544 120 1 80 1.5 60 2 2595
EV 3124 1/2 0.37 1400 5089 238 1 158 1.5 115 2 5190
EV 3114 1 0.75 1400 10178 480 1 320 1.5 235 2 10380
EV 3214 2 1.5 1400 20356 950 1 640 1.5 475 2 20770
EV 3314 3 2.2 1400 30534 1410 1 940 1.5 710 2 31150
EV 3514 5 3.7 1400 50890 2330 1 1560 1.5 1180 2 51900
EV 3146 1/4 0.187 960 2473 242 1 120 2 80 3 2520
EV 3126 1/2 0.37 960 4947 496 1 245 2 160 3 5050
EV 3116 1 0.75 960 9895 980 1 490 2 326 3 10100
EV 3216 2 1.5 960 19790 1960 1; 980 2 650 3 20190
EV 3316 3 2.2 960 29680 2940 1 1470 2 980 3 30280
EV 3516 5 3.7 960 49000 4830 1 2410 2 1610 3 50000

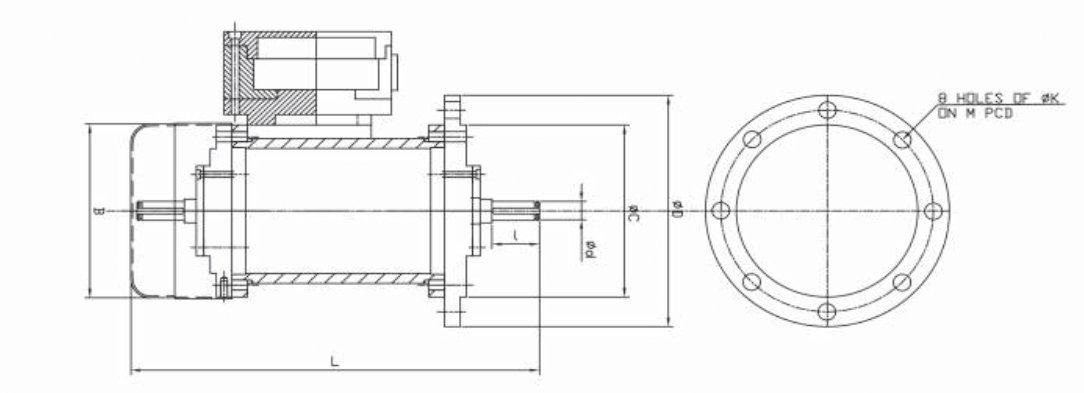

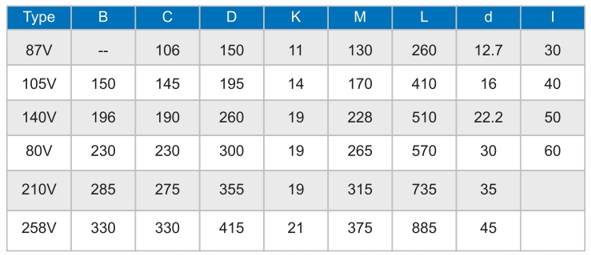

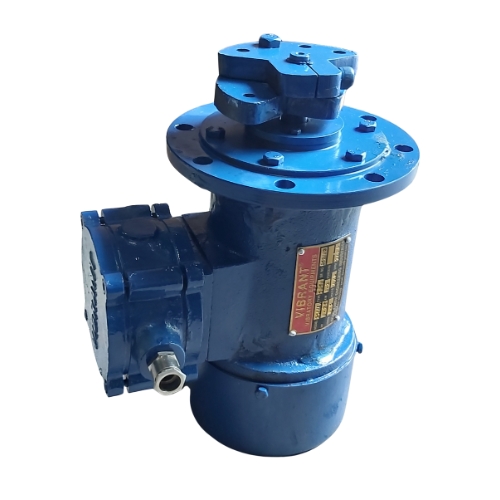

Type B C D K M L d I
87V 106 150 11 130 260 12.7 30
105V 150 145 195 14 170 410 16 40
140V 196 190 260 19 228 510 22.2 50
180V 230 230 300 19 265 570 30 60
210V 285 275 355 19 315 735 35
258V 330 330 415 21 375 885 45

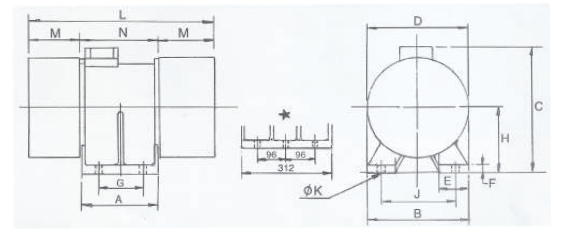

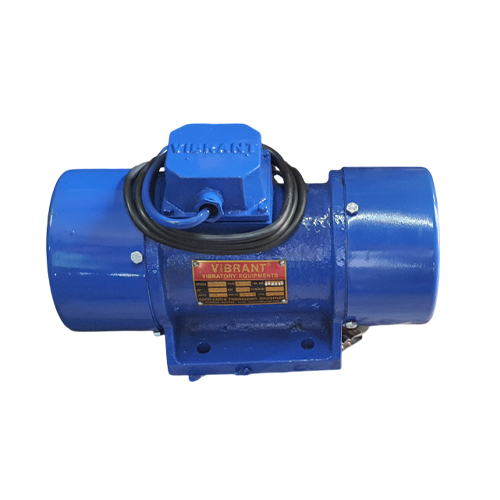

Type A B C D E F G H K L M N J
105H 165 166 200 150 44 15 100 85 13 410 120 170 125
140H 166 214 270 196 63 22 185 125 17 510 170 170 165
180H 212 230 300 230 60 20 130 135 17 570 175 220 180
210H 250 265 355 285 75 24 140 165 21 735 240 255 205
285H 312 330 387 330 100 30 96+96=192* 175 26 885 280 325 260
