LINEAR VIBRATING SCREEN
VIBRANT Linear Vibrating Screen (LVS) is a multi-layer sieving equipment, which can be used to sieve material of different mesh according to the customer's requirements for various materials. The operation is easy & convenient, replacement of screen process is simple .This equipment has wide range of application, mainly used in chemical industry, Pharma Industry, Mining, building materials, food, abrasive of granular, powder materials etc.
Primary Structure
This equipment is mainly composed of screen frame, Vibration motor, Supporting device. Screen Frame: Screen frame can be made by carbon steel or stainless steel according to customer's requirement. Vibration Motor: Two sets of horizontal foot mounted vibration motors are mounted on the equipment as vibration source. Combined they produce Linear force required for screening. Supporting Device: Supporting device is made of supporting springs and supporting frame. The Frame is made up of structural steel for rigidity.

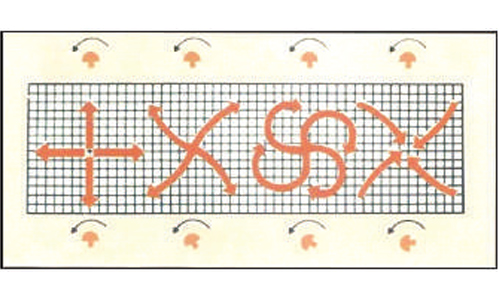

Working Principle
Two vibrator motors when rotated in opposite direction, produce linear motion. The screen frame supports four springs to produce reciprocating linear motion under the vibration force generated by the motors. The vertical component of the vibration lifts the material while horizontal component of vibration feeds the material forward, and assumes a parabolic path. In the process, the material which is smaller than screen mesh can go through it, so as to achieve the required classification
FEATURES :
  • Heavy Duty
  • Low Energy Consumption
  • High Efficiency
  • Easy Maintenance
  • Rigid
linear-vibrating-screen

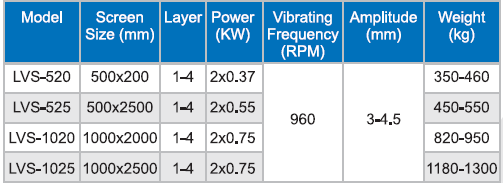

Model Screen Size (mm) Layer Power (KW) Vibrating Frequency (RPM) Amplitude Weight (kg)
LVS-520 500*200 1-4 2*0.37 960 3 – 4.5 350-460
LVS-525 500*2500 1-4 2*0.55 450-550
LVS-1020 1000*2000 1-4 2*0.75 820-950
LVS-1025 1000*2500 1-4 2*0.75 1180-1300
